KW1-M1100-000

FEEDER CL84B



KW1-M1400-00X

FEEDER CL8X2

蓝柄

KW1-M1500-030

FEEDER CL823

绿柄

K87-M1320-10X

导带齿轮

CL8X2 SPROCKET

KW1-M1113-000

8mm定位柱

Knock pin(Front/ Rear)

KW1-M111T-00X

螺丝

SCREW



Part No

Part Name



KW1-M111T-00X

SCREW,THIN HEAD



K87-M111P-00X

SCREW,FLAT HEAD+



K87-M11BF-00X

SCREW,FLAT HEAD +IB



K87-M111S-00X

SCREW,FLAT HEAD +

KW1-M112A-00X

连接片

RACKING LEVER ASSY

KW1-M1131-102

CL8mm前固定扣

CLAMP LEVER UNIT

KW1-M1140-00X

老款压料盖

CL8X4 TAPE GUIDE

KW1-M1140-010

CL8x4,NEW压料盖

Tape Guide Unit

KW1-M114A-00X

8mm连杆

HAND LEVER ASSY

KW1-M114L-000

废料盖子

Cover

KW1-M1150-000

手柄杆

Handle Lever Assy

KW1-M115L-000

CL8mm手柄

HOLD ARM

KW1-M116D-000

小单向轮拉杆

Tension Lever Assy

KW1-M116K-00X

连杆及配件

LEVER ASSY (CL8mm)

KW1-M1177-00X

8mm前连杆

MAIN ARM

KW1-M1185-00X

CL8mm气缸

MULTI CYLINDER

KW1-M1191-001

单向轴承卷带轮

DRIVE ROLLER UNIT

KW1-M1192-00X

CL8mm 单向轴承

INDENTATION LVR ASSY

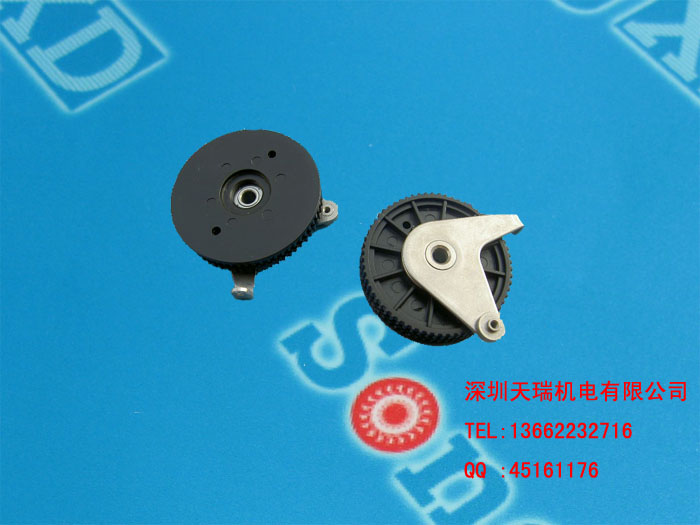

KW1-M119F-00X

CL8mm 大卷带轮

DRIVE ROLLER ASSY

KW1-M119L-00X

带轴承小卷带轮

IDLE ROLLER ASSY

KW1-M11A1-011

单向轮底部导向片

Lower Guide Plate

KW1-M11D0-200

FEEDER 尾巴

REEL HOLDER ASSY

KW1-M1340-00X

老款压料盖

CL8X2 TAPE GUIDE

KW1-M1340-010

CL8x2,NEW压料盖

Tape Guide Unit

KW1-M134T-00X

弹片及螺丝

LEAF SPRING & SCREW

KW1-M1540-00X

CL823压料盖

Tape Guide Assy

KW1-M119K-00X

CL8mm弹簧

SPRING



Part No

Remarks



K87-M112D-10X





KW1-M111E-00X

推动鸟咀弹簧



KW1-M111A-00X

止动鸟咀弹簧



KW1-M119K-00X

大单向轮拉力弹簧



KW1-M119P-00X

小单向轮压力弹簧





KW1-M2200-300

FEEDER CL12mm



KW1-M3200-10X

FEEDER CL16mm



K87-M1112-100

12/16mm定位柱

Knock pin

K87-M212L-10X

导带齿轮轴

Sprocket Axis Assy (CL12/16)

KW1-M125L-100

手柄

HOLD ARM (CL12/16mm)

KW1-M222A-00X

导带齿轮推动片

Racking Lever Assy (CL12&16)

KW1-M2231-001

前固定扣

Clamp Lever Unit (CL12/16mm

Tape Guide Plate Unit

CL12/CL16压料盖

Tape Guide Plate Unit

KW1-M224A-00X

连杆组合

HAND LEVER ASSY (CL12mm)

KW1-M224D-00X

后连杆

SUB ARM (CL12mm)

KW1-M2250-000

手柄杆

Handle Lever Assy (CL12mm

KW1-M226D-00X

小卷带轮杆及配件

TENSION LEVER ASSY (CL12/16)

KW1-M2277-00X

前连杆

MAIN ARM (CL12mm)

KW1-M2285-00X

CL12/16mm) 气缸

MULTI CYLINDER

KW1-M2291-000

带单向轴承卷带轮

DRIVE ROLLER UNIT (CL12/16)

KW1-M2292-00X

单向轴承

INDENTATION LVR ASSY (CL12mm

KW1-M229F-000

大卷带轮

DRIVE ROLLER ASSY (CL12mm

KW1-M229L-000

带轴承小卷带轮

IDLE ROLLER ASSY (CL12mm)

KW1-M324A-000

手连杆

HAND LEVER ASSY

KW1-M329F-00X

CL16mm) 大卷带轮

DRIVE ROLLER ASSY

KW1-M329L-000

带轴承小卷带轮

IDLE ROLLER ASSY (CL16mm)

















KW1-M4500-015

FEEDER CL24mm



KW1-M5500-010

FEEDER CL32mm



KW1-M6500-000

FEEDER CL44mm



KW1-M7500-000

FEEDER CL56mm



KW1-M8500-000

FEEDER CL72mm



K87-M2131-001

前固定扣

Clamp Lever Unit (CL24~72mm)

K87-M2381-000

气缸

AIR CYLINDER (CL24~72mm)

KW1-M451D-001

弹簧

SPRING (CL24~72mm)



Part No (New)

Part Name



KW1-M451D-001

SPRING



KW1-M459M-000

SPRING



KW1-M456C-000

SPRING



KW1-M451A-001

SPRING

K87-M559A-000

齿轮

DRIVE GEAR ASSY

K87-M559K-000

齿轮

INDEX GEAR

KW1-M4512-000

定位柱

Knock Pin (CL24~72mm)

KW1-M451G-000

连接片

LEVER ASSY

KW1-M451H-000

铁鸟嘴

BACK STOPPER (CL24~72mm)

KW1-M4520-000

导带齿轮

SPROCKET ASSY (CL24~72mm)

KW1-M452A-000

齿轮推动片

Racking Lever Assy (CL24~72mm)

KW1-M4540-000

压料盖

Tape Guide Assy (CL24mm-72mm)



Part No

Model



KW1-M4540-000

CL24mm



KW1-M5540-000

CL32mm



KW1-M6540-000

CL44mm



KW1-M7540-000

CL56mm

KW1-M4540-010

新款压料盖

Tape guide unit (CL24~56mm)



Part No

Model



KW1-M4540-010

CL24mm



KW1-M5540-010

CL32mm



KW1-M6540-010

CL44mm



KW1-M7540-010

CL56mm

KW1-M454A-020

压盖锁扣

LOCK LEVER ASSY (CL24~72mm)

KW1-M456N-000

料盘固定盖

Reel Cover Assy (CL24~72mm)

KW1-M4577-000

前连杆

MAIN ARM (CL24~72mm)

KW1-M458A-001

设置盘组合装置

SET PLATE ASSY (CL24~72mm

KW1-M459L-000

后连杆

SUB ARM (CL24~72mm)

KW1-M459N-000

卷带轮

ROOL UP Assy (CL24~72mm)

KW1-M459U-000

卷带轮盖

Reel Plate



Model

Part No



CL24mm

KW1-M459U-000



CL32mm

KW1-M559U-000



CL44mm

KW1-M659U-000



CL56mm

KW1-M759U-000
